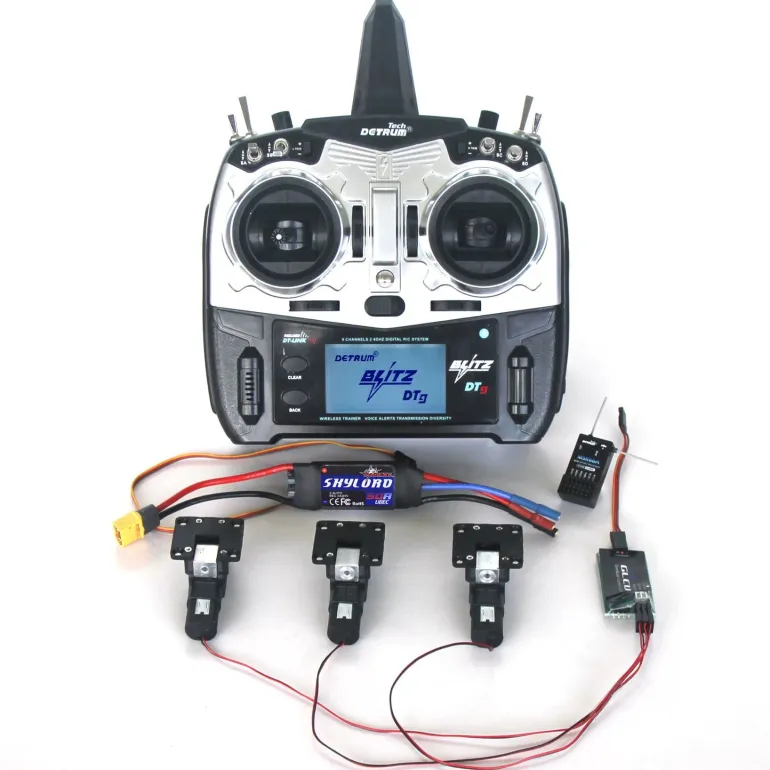

Dynam Radio Combo 2 (Detrum Blitz-DT9 9CH TX + MSR66A Stabilizer RX + Skylord 40A/50A ESC + Metal E-Retracts V3)

The Dynam Radio Combo 2 is a comprehensive package designed to enhance the performance and reliability of your RC aircraft. This combo includes:

• Detrum Blitz-DT9 9CH Transmitter (TX): A 9-channel transmitter offering precise control and multiple programmable options to tailor your flight experience.
• MSR66A Stabilizer Receiver (RX): A 6-channel receiver with built-in iStone 6-axis stabilization to ensure smooth and stable flight under various conditions.
• Skylord 40A/50A ESC: A high-performance 40A/50A electronic speed controller providing reliable power management and efficient throttle response.
• 3.1mm Dia 90° Metal E-Retracts V3 w/ Control Unit: Durable and reliable electric retracts designed to withstand the rigors of frequent use and harsh landing conditions.

This combination ensures enhanced control, stability, and durability, making it an ideal choice for RC enthusiasts seeking a high-quality and integrated solution for their aircraft.

Dynam Planes Gyro Data for Blitz-DT9

Please click here for .

Please click here for.

We have fully upgraded the DT9 transmitter, adding a feature to pre-store all Dynam airplanes (Gyro) data on an SD card. After the upgrade, you can quickly select the preset Gyro settings for the corresponding aircraft on the DT9 transmitter, and the system will automatically load the data, eliminating the need for manual adjustments. Once you select the Dynam planes, the Gyro stabilization data will load instantly, significantly improving flight efficiency and control precision.How to upgrade the Blitz DT9 9CH long-range transmitter?

This optimized technology is designed for RC enthusiasts who prioritize efficiency and precise control. It simplifies operations, makes flights smoother, and offers a seamless flight experience.

Detrum Blitz-DT9 9-CH Transmitter

• Dual Antenna Diversity
  Vertical antenna on top and horizontal antenna inside the handle ensure multi-angle and omnidirectional signal coverage. This design minimizes signal blind spots and reduces the risk of control loss, enhancing flight safety.
• SR86A-G Telemetry Receiver
  It provides real-time flight information.
• Innovative ESC Programming Design
  The BLITZ-DT9 transmitter allows you to program the ESC and stabilized receiver online, making setup simple and intuitive without the need for an additional programming card.
• Friendly Human-machine Interaction
  BLITZ-DT9 offers menu broadcasting and programmable voice alerts for telemetry data. With alarms, you’ll stay focused on flying as the synthesized voice broadcasts through the built-in speaker or audio interface, perfect for noisy environments. Vibration alerts are also available for alarm conditions.
• Opitimizing Intelligent Flight with Diverse Selection
  This groundbreaking transmitter is compatible with multiple receiver types, enabling Auto Balance Mode, Acro Mode, Altitude Hold Mode, POI (Point of Interest) Mode, Return-to-Home Mode, and more. It effectively addresses aircraft crashes caused by improper transmitter operation.
• Built-in Wireless Trainer System – 30m
  The BLITZ-DT9 transmitter features a built-in wireless trainer system, allowing instructors to teach flight skills wirelessly up to 30 meters, in addition to using a training cable to connect trainer and student transmitters.
• Long Standby Time
  Powered by a 7.4V 3000mAh Li-Po battery, it operates for over 15 hours continuously and supports online charging.
• Real-time Monitoring
  The transmitter can monitor real-time flight data including speed, altitude, position, battery voltage, and signal strength.
• Black Box
  Telemetry data is recorded on the SD card, allowing easy access to flight information and convenient maintenance.
• Straightforward Human-machine Setting Interface
  The setting interface uses characters and drawings, making it more vivid.
• Bluetooth Interface
  The built-in Bluetooth module allows connection to the Detrum FPV headset and firmware upgrades via the mobile app.
• Supporting various RC models
  Supporting a variety of RC models including rc airplanes, boats, drones, tanks, and excavators.
• Retrun Home
  With path control based on auto-recovery mode, the airplane can automatically plan its route and return to the starting point. Height is adjustable during the return flight. You can exit return mode anytime by toggling the return switch. Supports one-button return and signal loss return.
• Flight Mode
  Five flight modes: Gyro Off, Normal, Aerobatic, Auto-Recovery (Auto Balance), and Return. Switch between modes using the toggle switch.
• Main Control IC
  32-bit high-performance ARM core processor with 6-axis MEMS gyro chipset.
• Control Algorithm
  Original aircraft attitude stabilization and control algorithms support various aircraft configurations including normal wing, flying wing, V-tail, and 3D planes.
• Adjusting the Gain
  Configure the gain and other programmable settings using a compatible transmitter.
• High Sensitivity
  SR86A utilizes 2.4GHz DSSS and FHSS technologies, ensuring high receiving sensitivity and robust anti-interference capabilities.
• Unique ID Code
  Once bound, the receiver stores the ID code, eliminating the need for rebinding after restarting.

Blitz-DT9 9CH Transmitter Specifications

• Number of Channels: 9
• Modulation / Protocol: DSSS & FHSS
• Frequency Band: 2.4GHz
• Frame Rate: 2.6ms
• Telemetry: Yes
• Voice Alerts: Yes
• SD Card Support: Yes
• Upgradeable Firmware: Yes
• Trainer System: Yes (both wired and wireless)
• ESC Parameter Setting Support: Yes
• Stabilized Receiver Setting Support: Yes
• Black Box: Yes
• Built-in Charging Module: Yes
• Battery: 7.4V 3000mAh Li-Po (included)
• Charging Voltage: DC 12V/1.5A
• Current Consumption: < 300mA
• Dimensions: 204 × 246 × 122mm
• Net Weight: 693g (without battery) / 834g (with battery)

The Detrum Blitz-DT9 9CH Transmitter is a feature-rich, high-performance controller designed for precision and reliability in RC applications.

iStone MSR66A Mini Receiver

The iStone MSR66A Mini Receiver is a high-performance receiver designed for small-scale aircraft such as park flyers. Here are its key features:

• Advanced Processor and Gyro: Equipped with a 32-bit high-performance ARM core processor and a 6-axis MEMS gyro chipset.
• Versatile Aircraft Support: Compatible with normal wing, flying wing, V-tail airplanes, and 3D planes.
• Multiple Flight Modes: Easily switch between four flight modes: Gyro Off, Normal, Aerobatic, and Auto-Recovery (Auto Balance).
• Adjustable Gain: Set gain and other programmable features using the matching transmitter or a program card (not included).
• Robust Communication Technologies: Adopts 2.4GHz direct sequence spread spectrum (DSSS) and multiple frequency-hopping (FHSS) technologies for high receiving sensitivity and strong anti-interference capability.
• Stable Signal Reception: Features a diversity antenna combined with a signal detection and switching algorithm, ensuring stable and reliable signal reception.
• Unique ID Code: Stores the ID code after binding, eliminating the need for re-binding after restarting the receiver.
• Fail-Safe Feature: If the aircraft flies out of range and loses signal, the receiver’s outputs can be driven to their preset failsafe positions.
• Output: 6-channel PWM.

iStone MSR66A RX Specification

• Channels: 6-channel
• Modulation / Protocol: DSSS / FHSS
• Band: 2.4GHz
• Range: Full
• Telemetry: No
• Integrated Gyro: 6-axis
• Voltage Range: 3.6V – 16V
• Antenna: Dual Diversity
• Communication Distance: > 1.1Km
• Output Signal: PWM
• Dimensions (L x W x H): 37 x 20 x 13mm
• Weight: 7g

TomCat Skylord Speed Controller ESC

The TomCat Skylord Speed Controller ESC is a high-quality electronic speed controller designed for smooth and precise control of your RC aircraft. Compact and lightweight, the Skylord ESC boasts strong drive capability, high compatibility, convenient programming, and multiple safety features. Enhance your RC aircraft today with the precision and reliability of the TomCat Skylord ESC.

Skylord 40A ESC 5V/5A BEC Specifications

• Continuous Current: 40A
• Burst Current (10s): 55A
• BEC Mode: Switch
• BEC Output: 5V/3A
• BEC Output Capacity: Supports 2S Li-po 5 servos, 3S Li-po 5 servos, and 4S Li-po 5 servos
• Battery Compatibility: 2-4 cell Li-po, 5-12 cell Ni-MH
• Weight: 42g
• Size (L x W x H): 65 x 25 x 12mm

Skylord 50A ESC 5V/5A BEC Specifications

• Continuous Current: 50A
• Burst Current (10s): 65A
• BEC Mode: Switch
• BEC Output: 5V/5A
• BEC Output Capacity: Supports 2S Li-po 8 servos, 3S Li-po 8 servos, and 4S Li-po 6 servos
• Battery Compatibility: 2-4 cell Li-po, 5-12 cell Ni-MH
• Weight: 42g
• Size (L x W x H): 65 x 25 x 12mm

TomCat Skylord ESC Key Features

Strong Drive Capability

• Powerful Performance: Provides rapid startup speed, large torque, and smooth operation under heavy load.
• Increased Driving Force: Delivers approximately 10% more driving force compared to similar products from other manufacturers.
• Durable Design: Uses high-quality power devices and a derating design to withstand shocks from load currents exceeding the rated current due to frequent motor start/stop and rapid throttle changes.
• Strict Quality Control: Ensures fully functional and cost-effective products through a rigorous manufacturing process.

Excellent Motor Control

• Adaptability and Efficiency: Drives various aircraft motors with good adaptability and high efficiency, suitable for airplanes, helicopters, multi-rotors, and more.
  Fast Response: Features an excellent motor control algorithm and fast responding speed.

High Compatibility

• Multiple Start Modes: Offers three start modes (normal, soft, and super-soft) suitable for airplanes and helicopters.
• Wide Support: Compatible with different timing settings and various transmitters, supporting aircraft and disc-type motors.
• Adjustable Throttle Range: Allows for full compatibility with various transmitters.

Multiple Safety Protections

• Comprehensive Protection: Includes low voltage protection, overheating protection, overload protection, throttle signal loss protection, and more.
• Enhanced Stability: An independent DC regulator powers the microprocessor in the ESC, providing better anti-interference performance and reducing the risk of control loss.

Convenient Programming

• Easy Programming: Utilize a 3-in-1 LCD programming card for simple and efficient programming of the Skylord series ESCs.
• Multi-Functionality: The LCD programming card can also program the stabilizer and measure the Li-Po battery voltage.

Dynam New Upgraded Metal E-Retract Retractable Landing Gear

Experience high torque, realistic scale-speed performance, and unmatched durability with the Dynam 3.1mm Dia 90° Metal E-Retract Retractable Landing Gear.

Key Features

• Integrated Control Unit: Manages both retracting landing gears and LED drivers, ensuring seamless operation and precise control.
• Reliability and Stability: Rigorously tested for continuous and dependable performance under all conditions.
• Sensor-Free, Chip-Controlled: Advanced chip control technology offers smoother and more hassle-free operation.
• Enhanced Efficiency: Redesigned internal structure improves motor efficiency within the landing gear.

Includes

• 3 retracts
• 1 control unit (LED lights not included)

Operating Conditions

• Temperature: -20℃ to 60℃ / -4℉ to 140℉
• Humidity: 15% to 90% RH (no condensation)

Storage Conditions

• Temperature: -20℃ to 70℃ / -4℉ to 158℉
• Humidity: 15% to 75% RH (no condensation)

Compatibility

• Suitable for model airplanes with a wingspan of 1000mm to 1800mm.

Elevate your flying experience with our latest innovation in retractable landing gear technology!
