🌟🎉 New Release! Detrum SR6-RC 6CH 2.4GHz Receiver w/ iStone 6-Axis Stabilization & Runway Correction

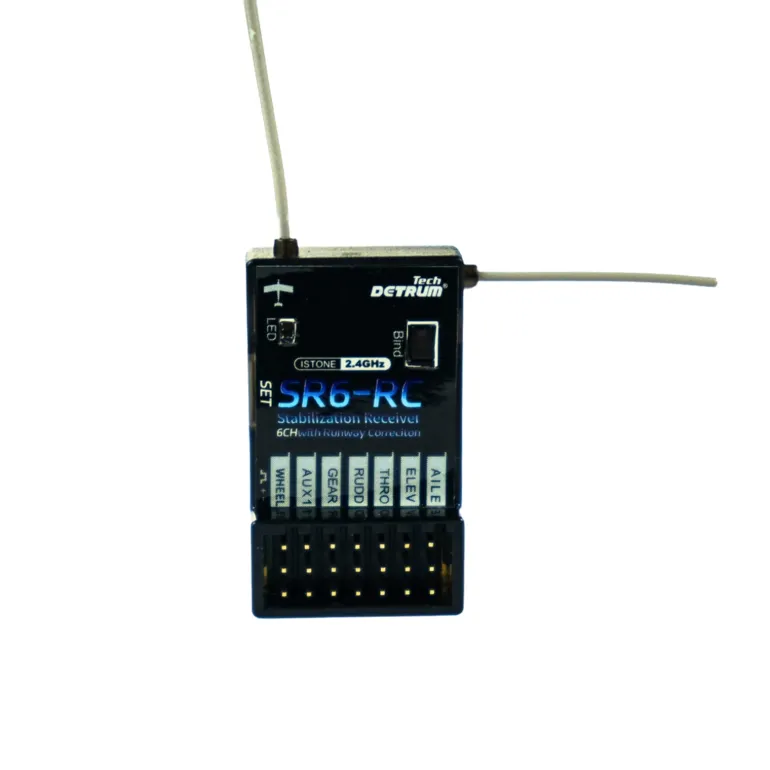

The Detrum SR6-RC is a compact, high-performance 6-channel 2.4GHz 3-IN-1 receiver that integrates advanced iStone 6-axis gyro stabilization and Vector runway correction into a single unit.

Designed specifically for , the SR6-RC enhances flight stability, improves takeoff and landing control, and reduces pilot workload—making it ideal for both beginners and experienced pilots.

Compatible with conventional aircraft, flying wings (delta), and V-tail configurations, this receiver delivers reliable performance across a wide range of RC airplane platforms.

Key Features

All-in-One Flight Control Solution

• Combines Receiver + iStone Gyro Stabilizer + Runway Correction
• Reduces onboard electronics and simplifies installation
• Improves reliability and saves space

Advanced 6-Axis iStone Stabilization

• Built-in MEMS 6-axis gyro with 32-bit ARM processor
• Real-time correction on roll, pitch, and yaw axes
• Enhances flight stability and wind resistance

Vector Runway Correction System – Tricycle Gear Optimized

• Automatically corrects directional deviation during taxi and takeoff
• Improves ground handling and reduces risk of veering
• Dedicated WHEEL output channel for nose wheel steering servo

Four Intelligent Flight Modes

Easily switch between modes via a 3-position switch:

• Gyro Off Mode – Direct control for setup and testing
• Normal Stabilization Mode – Smooth, stable flight with gyro assistance
• Attitude Lock (Aerobatic Mode) – Holds aircraft attitude when sticks are released
• Safe Mode (Self-Leveling) – Automatically levels aircraft for recovery and beginner support

Plug & Play with Smart Calibration

• Automatic gyro zeroing and stick center calibration
• No complex setup required
• Fast initialization on power-up

Wide Airplane Compatibility

• Standard fixed-wing aircraft
• Flying wing (delta)
• V-tail aircraft

Quick Installation & Setup

1. Create a new model on your transmitter
2. Assign a 3-position switch for flight modes
3. Install the SR6-RC near the center of gravity
4. Power on the aircraft on a level surface for auto calibration
5. Adjust servo directions and endpoints in Gyro Off mode
6. Verify gyro correction directions in Normal mode
7. Fine-tune gain and parameters, then proceed to flight testing

Channel Assignment

Channel	Function	Description
AILE	Aileron	Roll control
ELEV	Elevator	Pitch control
THRO	Throttle	Motor control
RUDD	Rudder	Yaw control
GEAR	Landing Gear	Also used for runway correction control
AUX1	Auxiliary	Custom function
WHEEL	Steering Output	Nose wheel correction servo

Runway Correction Logic

• Controlled via Channel 5 (GEAR)
• Signal < 1600 μs → Correction ON
• Signal ≥ 1600 μs → Correction OFF

With landing gear:

• Gear down → Correction ON
• Gear up → Correction OFF

Without landing gear:

• Switch ON → Correction ON
• Switch OFF → Correction OFF

Installation Guidelines

• Mount near the center of gravity (CG)
• Ensure arrow faces forward
• Align receiver axes with aircraft roll and pitch axes
• Use included double-sided tape only
• Keep away from motor, ESC, battery, and moving parts
• Position antennas at 90°angles for best signal reception

LED Status Indicators

LED Status	Meaning
Red flashing (fast)	No signal / transmitter off
Red flashing (slow)	Ready to bind
Solid green	Binding successful / Gyro Off mode
Green flashing	Calibration in progress
Solid blue	Normal stabilization mode
Solid purple	Attitude lock mode – Aerobatic
Blue-green	Safe (self-leveling) mode
Solid red	Calibration failed

Specifications

Parameter	Specification
Channels	6 Channels
Gyro	6-Axis MEMS
Sensitivity	-97 dBm
Output Signal	PWM (71Hz)
Input Voltage	3.6V – 16V
Dimensions	39 × 20 × 13 mm
Weight	7 g

Why Choose the Detrum SR6-RC?

The Detrum SR6-RC is engineered for pilots who want greater control, smoother flight, and safer takeoffs and landings without adding complexity. Its integrated stabilization and runway correction make it especially valuable for:

• Scale aircraft pilots
• Beginners learning fixed-wing flight
• Pilots flying in windy conditions
• FPV fixed-wing setups requiring stability and recovery

How to Wire the SR6-RC Correctly:
