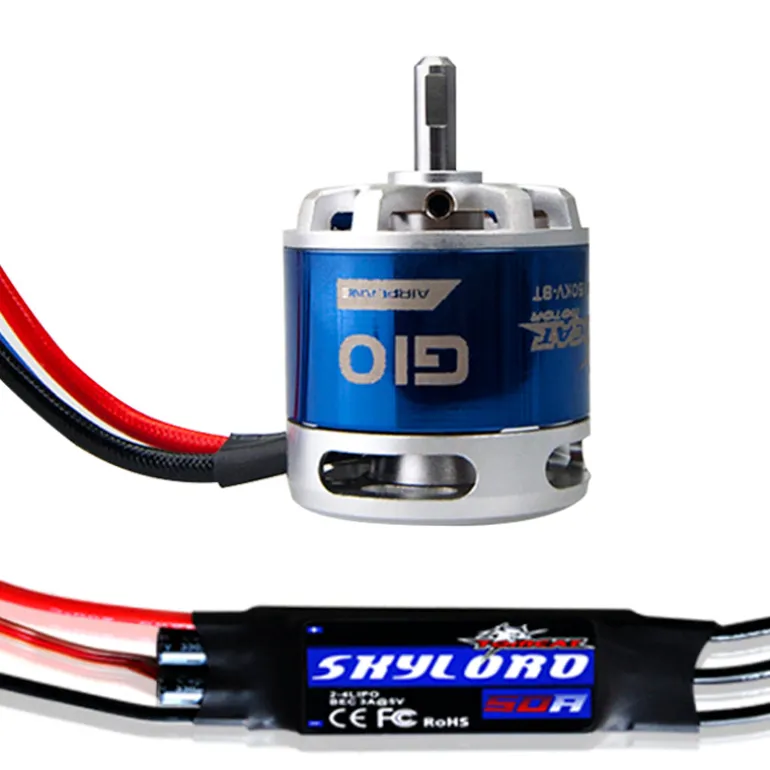

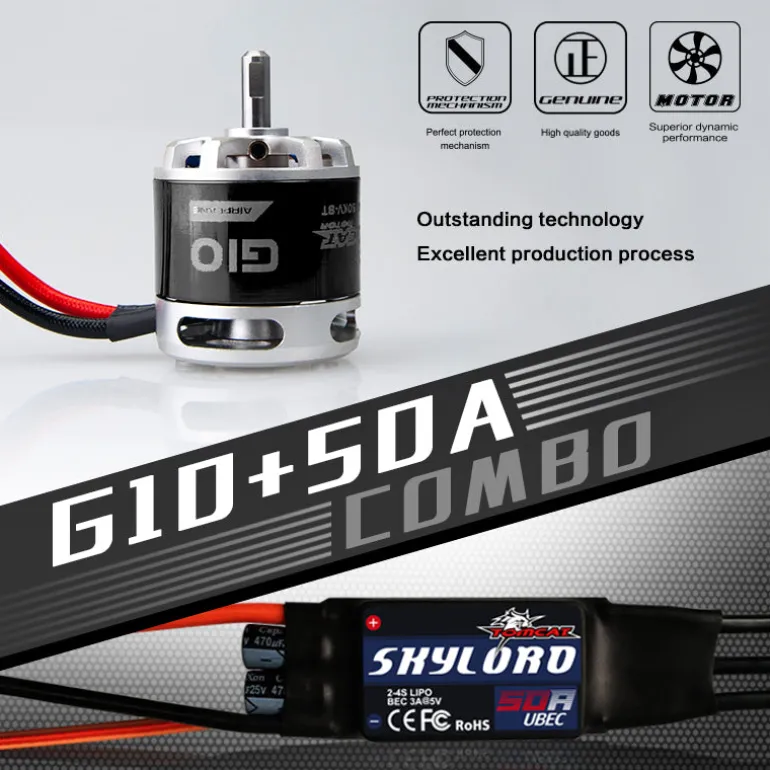

TomCat G10 3514-1150KV Motor w/ Skylord 50A ESC Combo Set

This power combo features the Skylord 50A ESC 5V/5A BEC and TomCat TC-G-3514-KV1150 (G10) brushless motor, delivering robust power, precise control, and rapid response. Its advanced design ensures superior performance and innovative technology for an enhanced RC experience.

The TomCat G10 3514-1150KV Outrunner Brushless Motor is a robust and efficient replacement for a ten glow. Ideal for RC enthusiasts, it delivers smooth, quiet power and speed. Suitable for 2-3 cell LiPo batteries, pair it with a 50A ESC. Expect 900-1400g of thrust on 10″-12″ props with 3 cells, and 500-700g with 2 cells. The G10 motor is rated at 460W max, with a suggested amp draw of 33A (44A burst).

This power combo set includes:

• Skylord 50A ESC (with 5V/5A BEC) x1
• TomCat Brushless Motor G10 x1

TomCat G Series Balsa EP Planes Brushless Motor Features:

• High-Strength Aluminum Alloy Casing: Enhances impact resistance.
• Wear-Proof Bearing: Ensures smooth, high-speed rotation and longevity.
• Heat-Resistant Magnet Wire: 240° resistant, vacuum impregnated for better heat conduction and longer service life.
• High Conductivity Silicon Steel: Made in Japan, boosts motor efficiency.
• N45H Magnets: High torque output, resistant to demagnetization at high temperatures.
• Optimized Heat Dissipation: Innovative design for efficient cooling and consistent performance.
• Dynamic Balancing: Reduces vibration and noise, ensures stable high-speed operation.
• Versatile Accessories: Includes 75cm extension cord and 10cm assembled wire for flexible connections.
• Enhanced Compatibility: Pairs excellently with Skylord series ESC, offering outstanding performance in Balsa EP airplanes.

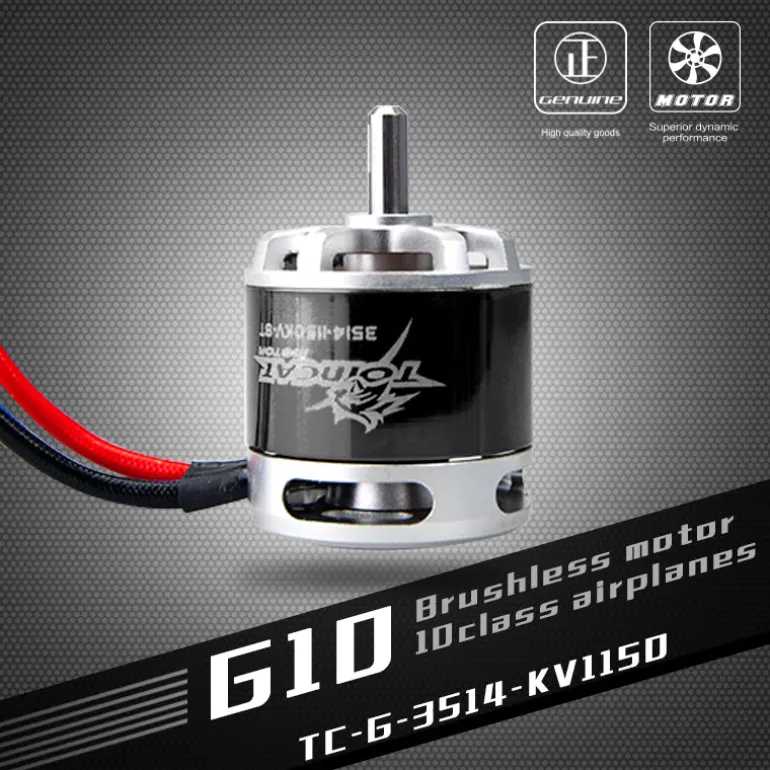

TomCat G10 Motor Specifications:

• Type: TC-G-3514-KV1150 (G10)
• KV(rpms per volt): 1150
• No load current: 1.9 A @10V
• Resistance: 0.044 ohms
• Watts: up to 460
• Continuous Current: 33A
• Max Burst Current: 44A,10seconds
• Cells: 2–3 S Li-Po (3510-12T 980KV 2-4 Cell Lipo)
• Recommended Props: 10×5 to 12×6
• Slots,Poles: 12,14
• Weight: 3.8 oz (110g)
• Motor Outer Dia: 35mm
• Shaft Dia: 5mm
• Brushless ESC: 50A

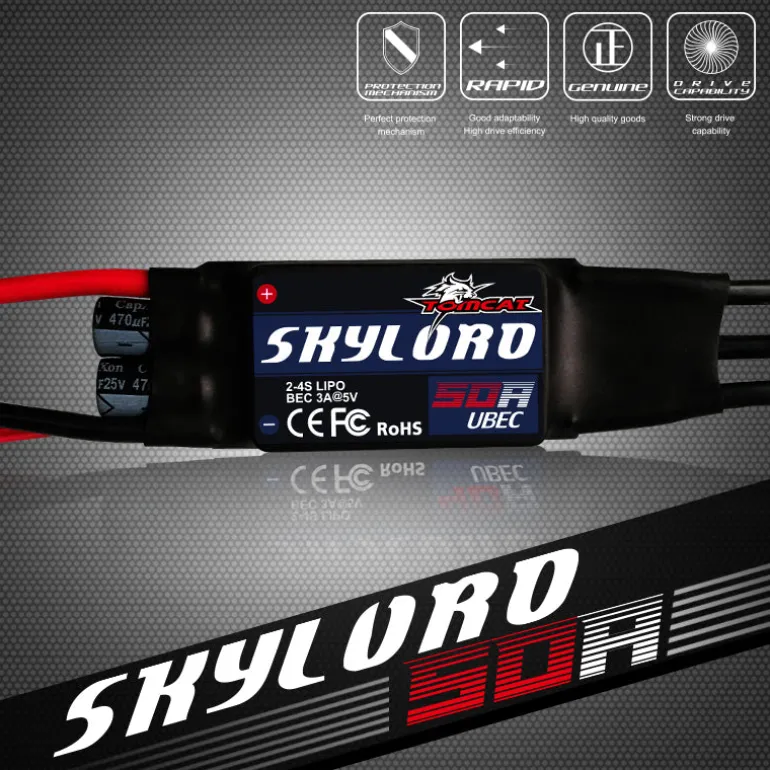

Skylord Electronic Speed Controller (ESC) Features:

• The ESC’s microprocessor is powered by a separate voltage regulator IC for enhanced anti-jamming, reducing the risk of loss of control.
• Throttle range is configurable, compatible with most transmitters, providing smooth, accurate speed control and excellent throttle linearity.
• Maximum motor speeds: 210,000 RPM (2 poles), 70,000 RPM (6 poles), 35,000 RPM (12 poles).
• Three start modes: Normal (fixed-wing), Soft, and Super-soft (helicopters).
• Comprehensive protection features: low voltage, over-heat, over-load, and throttle signal loss, extending ESC lifespan.
• Selectable timing supports both aircraft and disc-type motors.
• Multiple programmable options to suit various needs.
• Optional 3-in-1 programming card offers an intuitive, compact interface for easy ESC programming.
