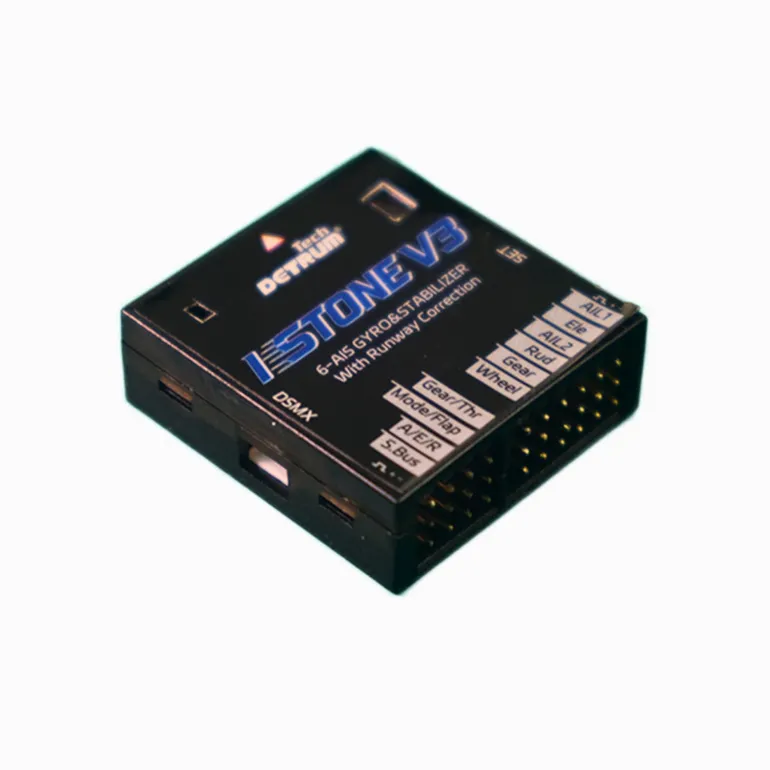

🌟🎉 New Release! Detrum iStone V3 6-Axis Gyro Stabilizer with Runway Correction 2 in 1 for RC Airplane PWM/S.BUS/DSM Compatible

The Detrum iStone V3 combines V2 and Vector technologies into a single advanced solution. It’s a high-performance 6-axis gyro stabilizer designed for RC aircraft. Featuring advanced flight stabilization, runway correction (ground steering assist), and broad receiver compatibility, it significantly enhances flight stability, control precision, and takeoff/landing performance.

Built around a 32-bit ARM processor and MEMS 6-axis sensor, the iStone V3 delivers real-time corrections across roll, pitch, and yaw axes—making it ideal for both beginner pilots and experienced flyers seeking smoother, more controlled flight.

Compatible with standard fixed-wing, flying wing (delta), and V-tail aircraft, the iStone V3 is a versatile upgrade for nearly any RC airplane setup.

Key Features

Advanced 6-Axis Flight Stabilization

• High-precision MEMS gyro + accelerometer
• Real-time correction on roll, pitch, and yaw axes
• Improves stability, tracking, and wind resistance

Integrated Runway Correction (Ground Steering Assist) Tricycle Gear Optimized

• Automatically maintains directional control during landing and takeoff
• Reduces veering and improves runway tracking
• Dedicated wheel output for nose wheel servo

Four Intelligent Flight Modes

Switch easily via a 3-position transmitter switch:

• Gyro Off Mode – Direct control for setup and testing
• Normal Mode – Stabilized flight with gyro assistance
• Safe Mode (Auto-Level) – Keeps aircraft level; ideal for beginners and recovery
• 3D Lock Mode (Aerobatic) – Locks aircraft attitude when sticks are centered

Wide Receiver Compatibility

Supports multiple receiver types:

• PWM receivers
• S.Bus receivers
• DSM receivers

Flexible Aircraft Support

• Conventional fixed-wing aircraft
• Flying wing (Delta) with elevon mixing
• V-tail aircraft with integrated mixing

Fully Programmable via Programming Card

• Mounting orientation (4 directions)
• Wing type selection
• Flight mode assignment
• Roll / Pitch offset (level trim)
• Gain tuning (angle gain & rate gain)

What’s Included

Item	Quantity
iStone V3 Stabilizer	1
Double-sided vibration-damping tape	2
3-in-1 signal cable	1
Single signal cables	2
Programming card + USB cable	Optional

Quick Setup Guide
1. Create a new model on your transmitter
2. Assign a 3-position switch for flight modes
3. Install the iStone V3 near the center of gravity (CG)
4. Power on the aircraft on a level surface

• Green LED flashing = calibration in progress
• Do not move the aircraft during this process

5. Configure mounting direction and wing type via programming card
6. In Gyro Off mode, adjust servo centers and endpoints
7. Verify gyro correction directions in Normal mode
8. Fine-tune gains and proceed to flight testing

Flight Modes

Mode	Description
Gyro Off	No stabilization; direct transmitter control
Normal Mode	Real-time gyro correction for stable flight
Safe Mode	Auto-leveling; keeps aircraft horizontal
3D Lock Aerobatic	Locks aircraft attitude when sticks return to center

Connection Overview
Supported Inputs

• PWM (standard receiver)
• S.Bus
• DSM

Input/Output Channels

Port	Description
AIL1	Aileron servo 1
ELE	Elevator servo
AIL2	Aileron servo 2
Rud	Rudder servo
Gear	Landing gear output
Wheel	Stabilized steering output (nose wheel servo)
Gear/Thr	DSM/S.BUS: Throttle output (to ESC) PWM: Gear input (from receiver)
Mode/Flap	DSM/S.BUS: Channel 6 output PWM: Flight mode input
A-E-R	3-in-1 cable to receiver Aileron/Elevator/Rudder
S.Bus	S.BUS receiver input
DSM	DSM receiver input
SET	Data interface for programming card

Installation Guidelines

• Install near the aircraft’s center of gravity
• Ensure arrow faces forward (nose direction)
• Align unit parallel to roll and pitch axes
• Use included vibration-damping tape only
• Keep away from motor, ESC, battery, and moving parts
• Maintain proper antenna and wiring routing

Level Calibration (Important)

If the aircraft does not maintain level flight:

• 1. Land and place on a perfectly level surface
• 2. Toggle the mode switch more than 5 times
• 3. Green LED will flash rapidly during calibration
• 4. Restart the stabilizer after completion

LED Status Indicators

LED Color	Status
Solid Blue	Normal Mode
Solid Purple	3D Lock Mode – Aerobatic
Solid Green	Gyro Off Mode
Blue-Green	Safe Mode
Green Flashing	Calibration in progress
Red Flashing	Signal lost / transmitter off
Red Slow Flash	Calibration failure

Technical Specifications

Parameter	Specification
Processor	32-bit ARM MCU
Gyro Sensor	6-axis MEMS
Gyro Range	±2000 dps
Accelerometer Range	±4g
Input Signal	PWM / S.Bus / DSM
Output Signal	PWM (71.4 Hz)
Operating Voltage	4.8V – 7.4V
Operating Temperature	-20°C to 70°C
Dimensions	36.5 × 29.4 × 12.6 mm
Weight	10 g

Why Choose the Detrum iStone V3 Gyro Stabilizer?

The Detrum iStone V3 gyro is designed for RC pilots who want greater control, smoother flight, and safer operation without complex setup. Its advanced stabilization and runway correction make it especially valuable for:

• Scale and sport aircraft pilots
• Beginners learning fixed-wing flight
• Windy flying conditions
• FPV fixed-wing platforms
• Precision takeoff and landing control

How to Wire the iStone V3 Correctly:
